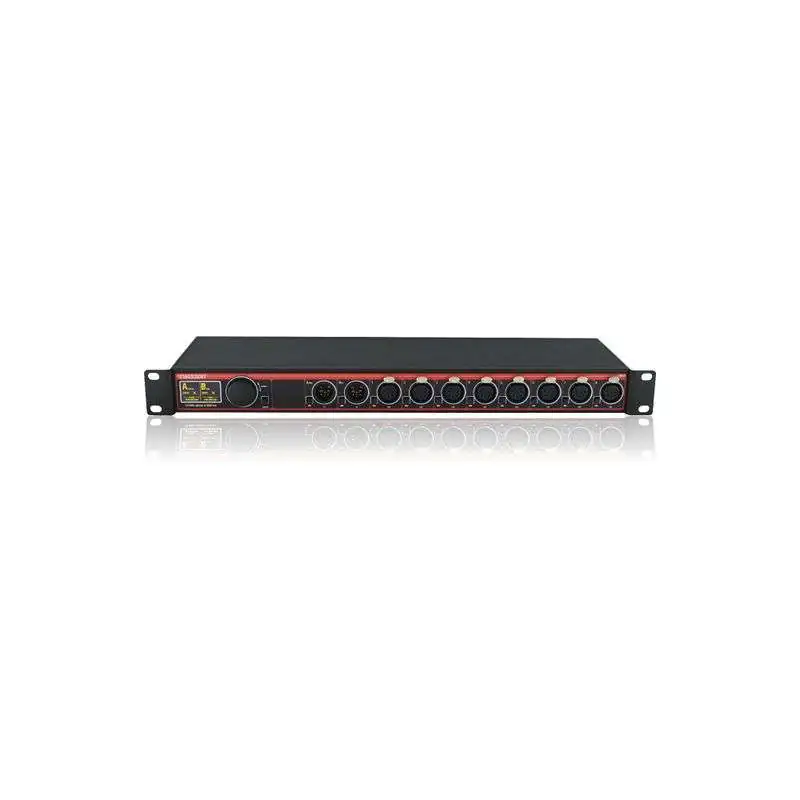

The Swisson XPD-28 splitters distribute the DMX signals from two inputs amplified and processed to eight outputs. Thus, the 32-device limit of the DMX standard can easily be overcome and star topologies can be created. The XPD-28 can also be used as a repeater to overcome longer distances.

With the XPD-28, you can determine how many outputs are assigned to which input universe at the push of a button. This allows you to always make optimum use of the splitter's output ports.

• Type: DMX/RDM splitter for rack mounting
• Material: Metal
• Colour: red/black
• Signal distribution: 2 x DMX/RDM in to 8 x DMX/RDM out
• Protocol: DMX 512/RDM
• Switchable: Terminating resistor, RDM
• Voltage: 50-276V, 50/60Hz
• Power supply: internal
• Connection: PowerCon
• Width: 482 mm / 19 inch
• Depth: 111 mm
• Height: 45 mm / 1 U
• weight: 1,70 kg
