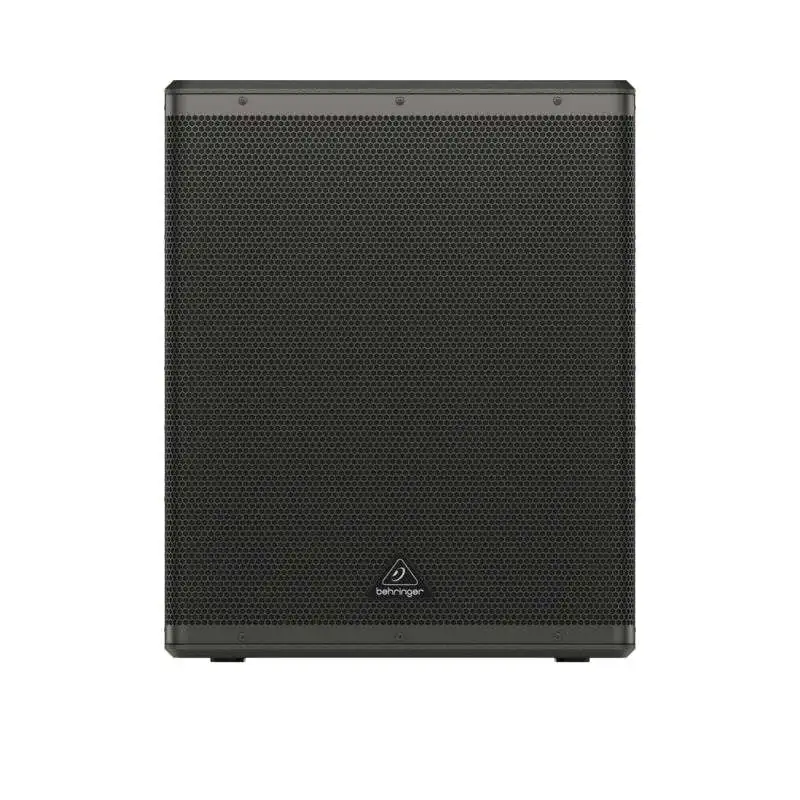

Behringer DR18SUB Active PA subwoofer
347,65 €
SKAT INKLUDERET
Active 18" subwoofer with 2400 watts and integrated stereo crossover for live and playback applications.
Gratis fragt på tusindvis af varer
100% sikre online betalinger
30 dage til rådighed til at returnere varerne
Active 18
- Powerful 2400-watt active subwoofer for live and playback applications
- Extremely powerful 18" long-excursion driver provides incredibly deep bass and acoustic power
- Extremely high sound pressure level and incredibly precise bass
- Precise reproduction of ultra-low frequencies for bulletproof punch and impact
- State-of-the-art 2400 Watt Class D amplifier with comprehensive overload, overheat, RMS and clip limit protection
- Built-in active stereo crossover provides high-pass filtered outputs for full-range speakers
- Phase switch for ultimate low-frequency performance
- Subwoofer level control to adjust the balance between subwoofer and full-range speakers
- Power, signal and clip LEDs for perfect monitoring
- Intelligent limiter for maximum sound performance and protection of the woofer
- Rod base for mounting with standard spacer rods
- Ergonomically shaped handles for easy transportation
- Robust steel grille for optimum speaker protection
- Balanced XLR connections for input and output signals
Low bass reserve for PA setups - ideal for l ive and playback
The Behringer DR18SUB is an active 18" subwoofer delivering 2400 watts of power, designed to provide low-frequency reinforcement for PA setups in live and playback applications. Its integrated stereo crossover allows flexible operation with full-range satellite speakers. In Link mode, the sub passes the entire frequency range to the satellites, while in Xover mode, only signals above the cut-off frequency are sent. The cut-off frequency can be switched between 90 Hz and 120 Hz, adapting the system to different setups. The DR18SUB features a level control for input gain and a phase switch to invert output phase, compensating for potential frequency cancellation between the subwoofer and satellite speakers. Status LEDs provide clear visual feedback for power, signal presence, and input overloads. An RMS and peak limiter offers reliable protection for the low-frequency driver. Capable of producing extremely high sound pressure levels of up to 129 dB across a frequency range of 30 to 150 Hz, the DR18SUB delivers deep, powerful bass for professional live and playback environments.
Technical data
- Output power (peak): 2400 watts
- Output power (RMS): 800 watts
- Input 1 / 2: 2 x XLR, servo-balanced
- Sensitivity: +4 dBu @ 0 dB (center position) at full rated power
- Input impedance: 10 kΩ unbalanced, 20 kΩ balanced
- Output 1 / 2: 2 x XLR, servo-balanced
- Output impedance: 1 kΩ unbalanced, 2 kΩ balanced
- High-pass filter: 90 / 120 Hz, Butterworth, 24 dB/oct. slope
- Dimensions (H x W x D): 650 x 530 x 609 mm
- Weight: 41 kg
Manufacturer information
Music Tribe DE1 GmbH
Otto-Brenner-Strasse 4a
47877 Willich
Germany
legal@musictribe.com
Otto-Brenner-Strasse 4a
47877 Willich
Germany
legal@musictribe.com
PAH0022944-000
Produktinformation
- Bluetooth
- No
- Signal Processing
- Active
- RJ45 Interface / Network
- No
- Manufacturer
- Behringer
- Weight (kg)
- 41
- Integrated Mixer
- No
- Width (mm)
- 530
- Height (mm)
- 650
- Depth (mm)
- 609
- Typ
- Sub
- Size of Woofer (Inches)
- 18
- Peak output in W
- 2400
- max. Peak SPL (dB)
- 129
- Housing Material
- Wood
- Flange
- 36mm
- Frequency Response from (Hz)
- 30
- Frequency Response to (Hz)
- 150
- DSP
- No
- Link
- No
- Input
- XLR
- Output
- XLR
- WLAN
- No
- Battery operation
- No
- Wheels included
- No
- Crossover Network
- Yes
- EQ
- No
- Output in W (RMS)
- 800
