      Active 12" floor monitor with 300 Watt RMS power, high quality technology & dispersion pattern by 50° x 90° CD horn.
      Ποσότητα:
      Γράψτε την κριτική σας

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Δωρεάν αποστολή για χιλιάδες είδηΔωρεάν αποστολή για χιλιάδες είδη
      • 100% ασφαλείς ηλεκτρονικές πληρωμές100% ασφαλείς ηλεκτρονικές πληρωμές
      • 30 ημέρες διαθέσιμες για την επιστροφή των αγαθών30 ημέρες διαθέσιμες για την επιστροφή των αγαθών

      Active ground monitor

      • Compact and powerful stage monitor with high-quality technology
      • Class-D power amplifier with 300 W RMS/1200 W peak and 127 dB max. SPL
      • Coaxial design for a true point source with a 1.75" titanium diaphragm HF driver
      • 12" woofer with 2.5" voice coil
      • Optimized, practical dispersion pattern with 50° x 90° CD horn
      • DynX® DSP (Gen.2) for distortion-free output even at maximum volume
      • 3-band EQ, notch filter, 4 application presets and delay function
      • PowerCON-compatible, loop-through, professional power connector
      • 35 mm stand mount for FOH applications
      • Durable polyurea coating and rugged front grille


      MON G3 Series

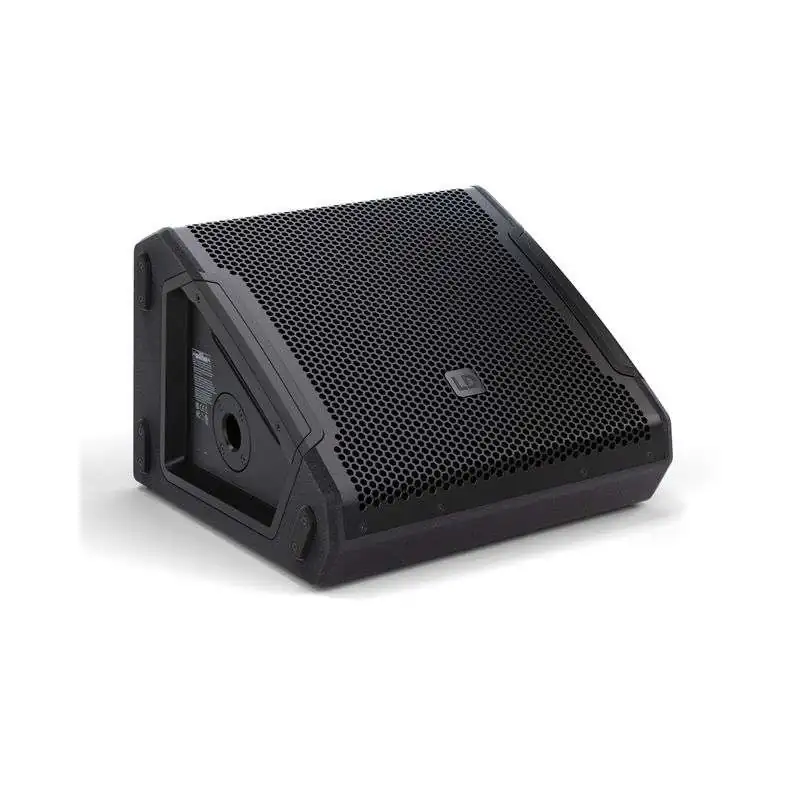

      LD-Systems MON 12 A G3 at a glance

      The MON 12 A G3 from LD-Systems is a compact and powerful stage monitor that represents the golden mean of the new floor monitor family when it comes to sonic fullness, sound pressure and transportability. With coaxial construction for a true point source, smart electronics and high-quality design, the MON 12 A G3 brings this concept into the "modern age". The ideal dispersion pattern of 50° x 90° in monitor use and 90° x 50° in FOH use make it a multi-talent that provides the right solution for a wide range of different tasks.

      MON G3 Series

      The LD Systems MON G3 Series is a completely new family of active stage monitors designed for high performance. The MON G3 Series incorporates the advanced technology and high-quality materials found in high-end monitors used primarily in professional applications. This quality is now made available to everyone.

      These include, for example, advanced coaxial loudspeakers with integrated 50° x 90° CD horn, which ensure the acoustic ideal of a true point source and thus outstanding audio characteristics even at short listening distances. In addition, there is the high robustness, the extensive equipment and the elegant LD-Systems design.


      Equipment

      The Class D power amplifier with 300 watts RMS and a maximum sound pressure level of 127 dB provides powerful and clear audio reproduction. The model features a coaxial design that allows for true point source sound. The 1.75" titanium diaphragm HF driver delivers precise and detailed highs, while the 12" woofer with a 2.5" voice coil provides punchy and well-defined bass. The dispersion pattern of the MON 12 A G3 is optimized and designed for practical use. The 50° x 90° CD horn ensures even sound distribution and high speech intelligibility on stage. With the 2nd Generation DynX DSP, the monitor offers distortion-free reproduction, even at maximum volume. In addition, a 3-band EQ, a notch filter, four application presets and a delay function are available to adjust the sound to individual needs.

      Furthermore, the product is also well-equipped in terms of connectivity and ease of use. Both the signal (XLR/jack combo) and power (PowerCON compatible) connections can be looped through. This allows for elegant, tidy cabling in multi-monitor setups or distributed sound reinforcement. The 35mm stand mount allows for easy mounting on a speaker stand for FOH applications. The heavy-duty polyurea coating and rugged front grille protect the floor monitor from external elements, making it durable and reliable.

      Technical data

      • Colour: Black
      • System power (RMS): 300 W
      • System power (peak): 1200 W
      • Max. SPL Average (Sine burst): 120 dB (100 Hz - 12 kHz, fullspace @1m, 10% THD)
      • Max. SPL Peak (Sine burst): 127 dB (fullspace @1m, 10% THD)
      • Frequency range (-3dB): 68 Hz - 18000 Hz
      • Frequency range (-10dB): 55 Hz - 20000 Hz
      • Crossover frequency: 1400 Hz
      • Monitor angle: 33
      • Beam angle (H x V): 50° x 90°
      • Power input/output: PowerCON compatible
      • Line inputs: 2
      • Line input connectors: 6.3 mm jack, XLR - combo
      • Width: 425 mm
      • Depth: 453 mm
      • Height: 315 mm
      • Features: 3 band EQ (High,Mid,Low), 4 application presets, Delay Line, Notch Filter
      • Weight: 17.4 kg
      LD-Systems
      PAH0023525-000

      Χαρακτηριστικά

      Bluetooth
      No
      Signal Processing
      Active
      RJ45 Interface / Network
      No
      Manufacturer
      LD-Systems
      Weight (kg)
      17.4
      Width (mm)
      425
      Height (mm)
      315
      Depth (mm)
      453
      Typ
      Monitor
      Multi-Function Housing
      Yes
      Mic Input
      2
      Size of Woofer (Inches)
      12
      Size of Tweeter (Inches)
      1.75
      Peak output in W
      1200
      max. Peak SPL (dB)
      127
      Housing Material
      Wood
      Flange
      35mm
      Beam angle
      50°
      Frequency Response from (Hz)
      55
      Frequency Response to (Hz)
      20000
      DSP
      Yes
      Link
      Yes
      Input
      Combo Socket
      Output
      XLR
      WLAN
      No
      Battery operation
      No
      incl. Stand
      No
      incl. Cover
      No
      Airworthy
      No
      EQ
      Yes
      Output in W (RMS)
      300
