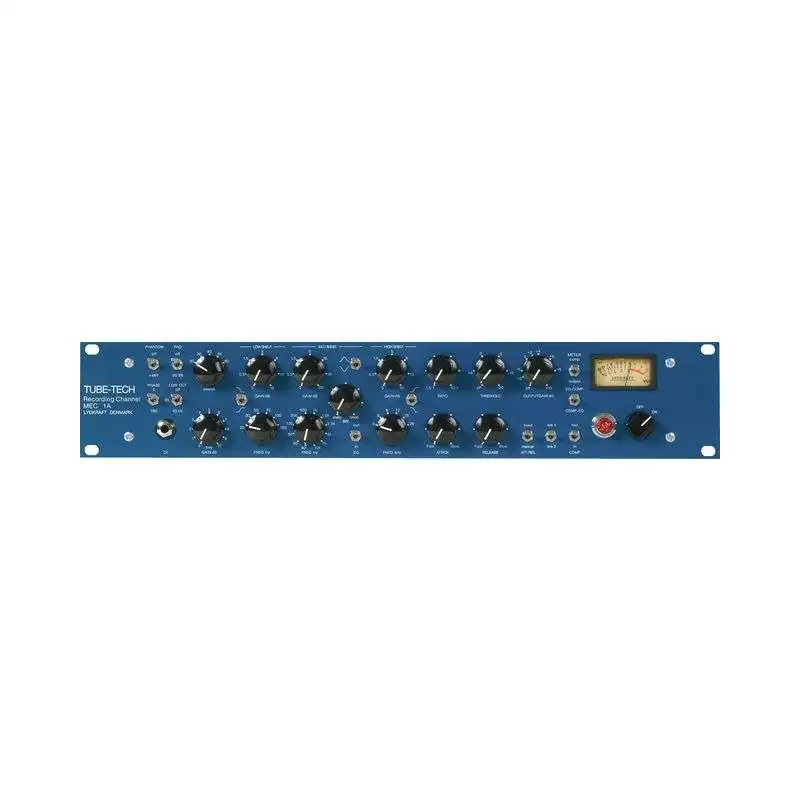

The Tube-Tech MEC1A Comprehensive Valve Channel Strip. High-end secret weapon, single channel unit, featuring Mic Preamp, equalizer and compressor.

The Tube-Tech MEC1A recording channel is single channel unit, featuring Mic Preamp, equalizer and compressor. The shelving and the bell filters are designed around a tube operational amplifier. The unit is all tube based except for the power supply. Input and output have fully floating transformers. All DC voltages are stabilized, except the anode voltage for the output stage.

The main features of the Tube-Tech MEC1A include:

• High-end secret weapon, single channel unit, featuring Mic Preamp, equalizer and compressor
• Highly versatile, great smooth sound for all Vocals, Bass via the useful instrument in works wonders too
• Mic pre +20 dB to +70 dB Gain
• Phantom Power (+48 V)
• Mic pre has Phase Reverse
• Mic pre has-20 dB pad
• Mic pre has lowcut filter
• High-impedance DI-input (greater than 1 Mohm) for direct connection of guitar, bass or keyboard
• Three band EQ
• 6 Low shelving frequency choices
• 6 High shelving frequency choices
• EQ has Bell type Mid section with 12 switchable frequencies
• Variable Q
• EQ has separate in/out switch
• Compressor is Optical gain reduction element design
• Compressor is linkable for stereo applications
• Compressor has Variable Attack and Release parameters
• Compressor Ratio 1,5:1 to 10:1
• Compressor has separate in/out switch
• MEC1A Master Output Gain (off to +10 dB)
• Clickless swap relay between Equalizer and Compressor
• VU-Meter showing output or compression
• Frequency response @ - 3dB: 5 Hz to 60 kHz
• Low Noise: Less than - 85 dBu @ 10 dB gain
• Gold-plated switches
• Conductive plastic potentiometers
• Fully regulated power supply with toroidal transformer
