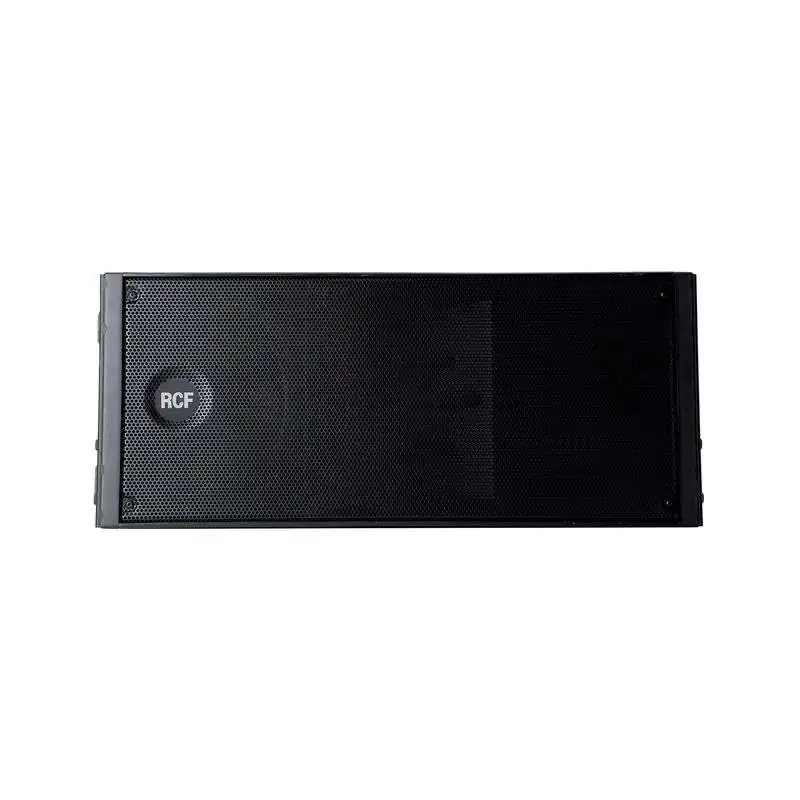

The RCF HDL 20-A is a PA Line Array Speaker, with 700 Watt output, and 2x10" Woofers. The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations. The HDL 20-A is the ideal choice When line array performance is needed and a fast and easy set-up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. The system features state of the art RCF transducers, two powerful 10" for a solid bass reproduction and a large format 3" voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic.

The main features of the RCF HDL 20-A include:

• Frequency Response -3 dB: 55 Hz ÷ 20 kHz
• Max SPL: 135 dB
• Horizontal coverage angle: 100 °
• Vertical coverage angle: 15 °
• Compression Driver: 2 ", 3.0" V.C.
• Woofer: 2 x 10 ", 2.5" V.C.
• Input signal: bal / unbal
• Input connectors: XLR
• Output connectors: XLR
• Input sensitivity: -2 dBu / +4 dBu
• Crossover frequencies: 1000 Hz
• Protections: Thermal, RMS
• Limiter: Soft limiter
• Controls: Cluster, HF, high curving, Indoor
• Total power: 700 W
• High frequencies: 200 W
• Low frequencies: 500 W
• Cooling: Convection
• Connections: PowerCon in / out
• Cabinet Material: Composite PP wooden, reinforced
• Hardware: Rigging flyware
• Handles: 2 side, 2 back
• Colour: Black
• Height: 294 / 11.05 mm / inch
• Width: 705 / 07.27 mm / inch
• Depth: 445 / 05.17 mm / inch
• Net Weight: 29 / 63.93 kg / lbs
