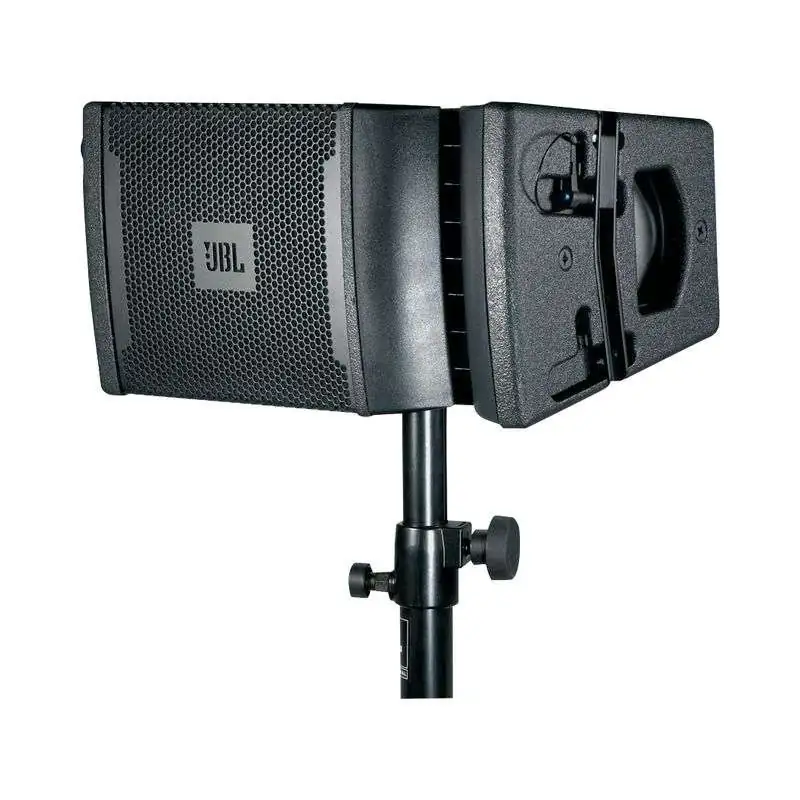

The JBL VRX 928LA Line Array PA Speaker is a lightweight (28 lb / 13 kg) compact 8" two-way linearray speaker system designed for use in arrays of up to six units. VRX928LA is the ideal choice when line-array performance is needed but the venue size doesn't call for the very long-throw characteristics of larger line-arrays such as JBL's VERTEC or VRX932LA. The Constant Curvature waveguide mounts two compression drivers on a continuous arc. When additional VRX928LA speakers are added to the array the uninterrupted arc continues. In effect, all the drivers work together as if they were a single driver on a very long waveguide. Since there are two HF drivers in each VRX928LA, the combined power handling and acoustic output of the system is far greater than a single driver could achieve. VRX928LA uses "amplitude shading" to shape the coverage of the array. Switches on the input plate allow, for example, the upper box in an array to reach the distant rear of a room while the lower box is shaded back to reduce excessive level at the front of the listening area. One or two VRX928LAs may also be used on a tripod or over the VRX915S subwoofer. The integral rigging hardware is used to securely lock the array together. As many as six VRX928LA speaker systems may be suspended in a single array for a nominal vertical coverage of up to 90°. Suspended applications require the JBL VRX928LA-SMAF array frame (available separately). For applications in which the array must be aimed sharply down, a second Array Frame may be installed to the bottom of the array serving as a pull-back

The main features of the JBL VRX 928LA Line Array PA Speaker include:

• JBL's exclusive neodymium magnet Differential Drive® woofer for highpower capacity and lightweight
• Two patent-pending neodymium HF compression drivers
• Constant Curvature waveguide for unprecedented array coherence
• Fly combinations of VRX928LA and Subwoofers (VRX915S) with optional array frame (VRX-SMAF)
• Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
• Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.
• Array Configuration Selector permits "array shading" in passive mode.
• Frequency Range (-10 dB): 70 Hz -20 kHz
• Frequency Response (±3 dB): 87 Hz - 19 kHz
• Weight: 12.7kg
