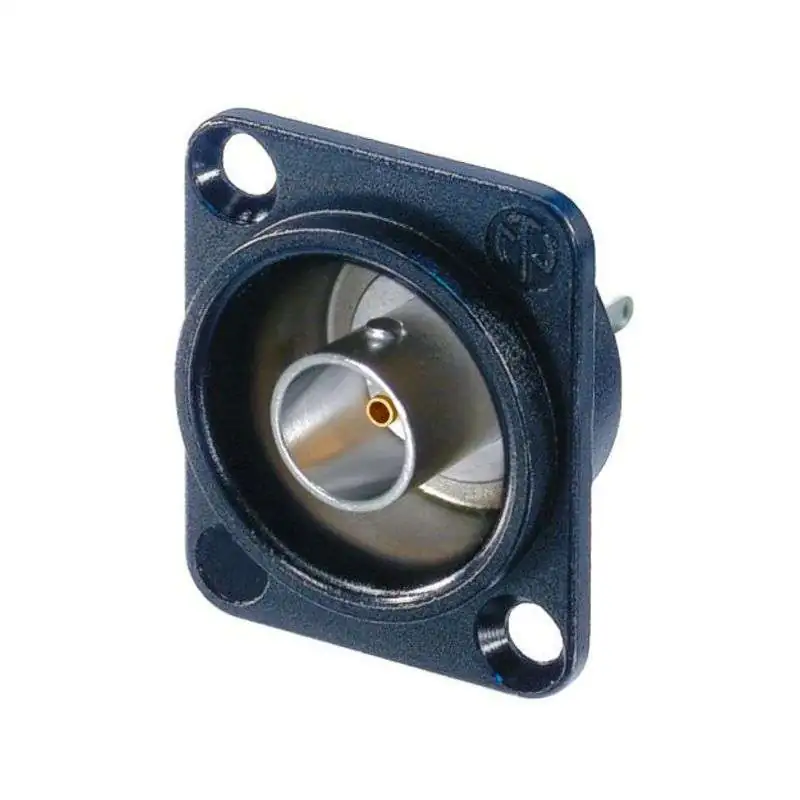

Neutrik NBB75DSGB Chassis Jack
12,24 €
SKAT INKLUDERET
BNC chassis connector, connector type: female, contacts: gold plated, color: black.
Gratis fragt på tusindvis af varer
100% sikre online betalinger
30 dage til rådighed til at returnere varerne
BNC chassis connector in black chrome D-shape housing, solder cups, grounded
Neutrik NBB75DSGB chassis connector for BNC is suitable for serial and digital video signals. The 75- Ω-BNC chassis connector offers excellent return loss values which are ideal for HD signals.
Its material as well as its construction also testify to Neutrik's typical stability and high quality. The milled brass body ensures a long-lasting and good connection. The gold-plated contact provides excellent shielding and protection against corrosion. As the connector is recessed in the standard D-format housing, it is additionally protected.
The possibility of coloured markings also ensures clarity and is helpful for structured organisation.
Separately available accessory for NBB75DSGB BNC chassis connector :
- Neutrik DSS labeling plate in various colors
- Neutrik MFD M3 mounting frame
- Neutrik SCDP gasket D-shape in different colours
- Neutrik SCDX sealing flap in different colours
- Neutrik SCCD-W sealing flap IP65 D-Series
- Neutrik SCD-W sealing cap
Specifications:
- Connection type: BNC 75 Ω
- Gender: female
- Signal Type: HD, SDI, Video, AES/EBU, Composite, YUV, RGB, RGBH, RGBHV
- Contact resistance: ≤ 3 mΩ (inner)
- Contact resistance: ≤ 2 mΩ (outer)
- Dielectric strength: 1.5 kVdc
- Impedance: 75 Ω
- Insulation resistance: > 5 GΩ
- Rated voltage: <50 V
- VSWR: ≤1.03/>37 dB up to 1 GHz, ≤1.05/>32 dB up to 2 GHz, ≤1.08/>28 dB up to 3 Ghz
- Insertion force: < 25 N
- Lifetime: > 1000 mating cycles
- Locking: Bayonet
- Mounting direction: Front mounting
- Housing shape: D
- contacts: Brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
- Insert: PTFE
- Housing: Polyacetal (POM) (Insulation Sheell)
- Housing coating: Optalloy®
- D-Shape housing: Zinc diecast (ZnAl4Cu1) gal black chrome plating
- Temperature range: -30 °C to +85 °C
ACC0009849-000
Produktinformation
- Impedance (Ohm)
- 75
- Male/Female
- Female
- To install
- Ja
- Angle
- No
- Manufacturer
- Neutrik
