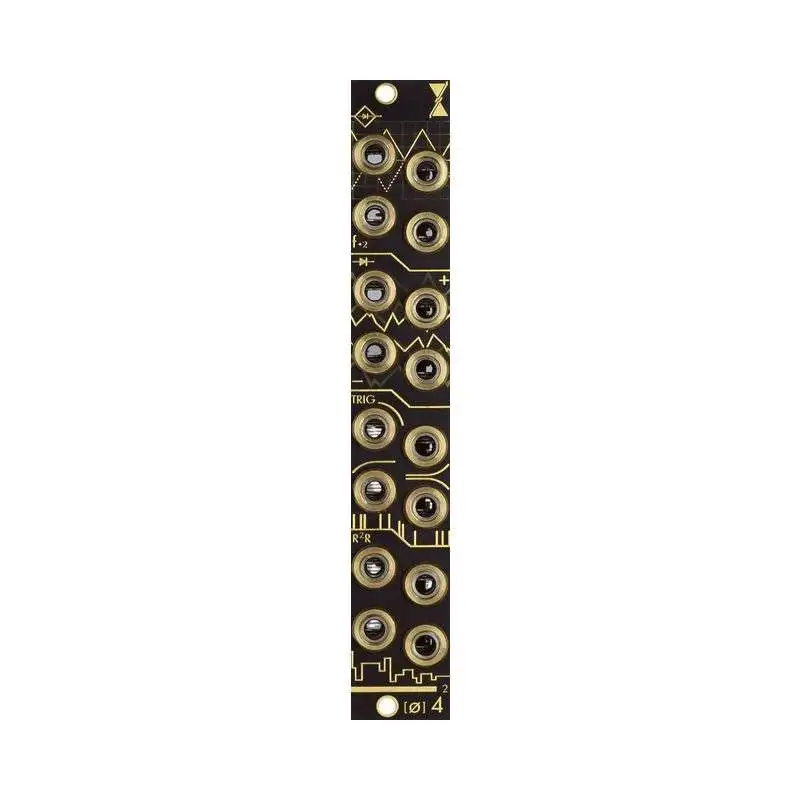

INSTRUO øchd Expander
      INSTRUO øchd Expander

      INSTRUO øchd Expander

      103,70 €
      SKAT INKLUDERET
      På lager
      The øchd Expander expands the øchd LFO with interesting CVs that would otherwise require a whole arsenal of additional modules.
      Antal :
      Skriv din anmeldelse

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Gratis fragt på tusindvis af varerGratis fragt på tusindvis af varer
      • 100% sikre online betalinger100% sikre online betalinger
      • 30 dage til rådighed til at returnere varerne30 dage til rådighed til at returnere varerne

      Expander for Instruo øchd

      • Extension module for Instruo øchd
      • 4 full wave rectifiers
      • 2 max/min circuits with analogue diode logic
      • 4 trigger sources that can be cascaded via normal connections
      • 4-bit DAC outputs that generate low-frequency noise variations

      MEET THE NEW OCHD EXPANDER

      The øchd Expander exp ands Instruo's øchd LFO with interesting control voltages that would otherwise require a whole arsenal of additional Module . The 16 outputs of the expander are derived from combinations of the 8 analog triangle waveforms to create an extravagant array of variable voltages, triggers and four stepped random voltage sources that can best be described as a kind of "slow noise". The expander simply connects to the back of the main module, tripling the total number of øchd voltages and adding another 16 outputs.

      INSTRUO
      SYN0008838-000

      Produktinformation

      Manufacturer
      Instruo
      Depth (mm)
      32
      + 12 V (mA)
      5
      - 12 V (mA)
      5
      TE / HP
      4
      Passive
      No
