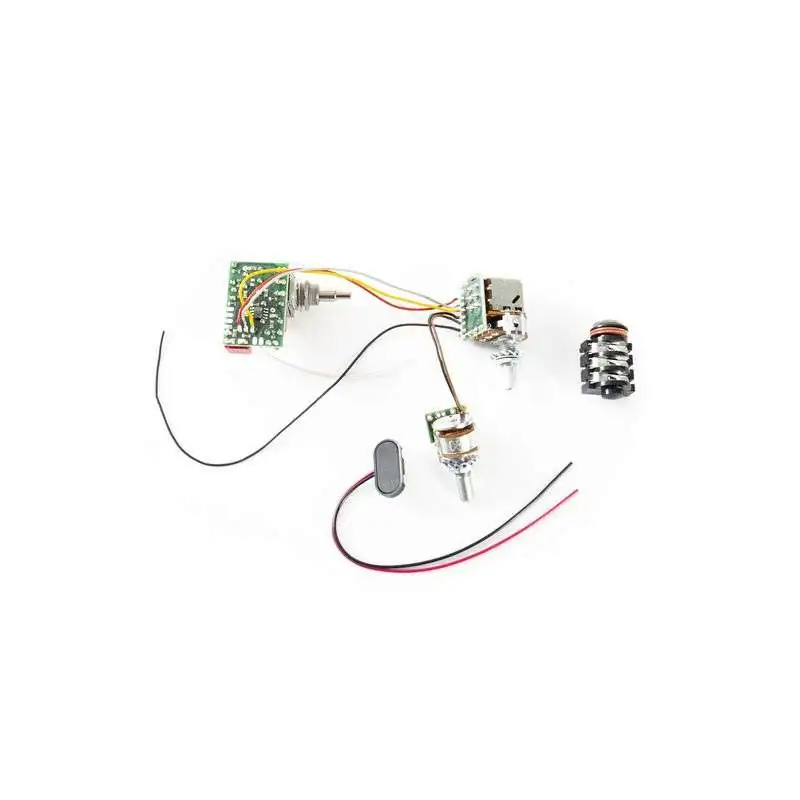

The Glockenklang Onboard Preamp 2-Band is an active/passive switchable preamp featuring pots for balance, treble and bass with a 9V battery connection and pre-wired configuration. The Glockenklang Onboard Preamp comes with a stacked treble/bass pot, pre-wired with highly flexible cables.

The main features of the Glockenklang Onboard Preamp 2-Band include:

• Gain: 1 (0 dB)
• Input-Impedance (Without Balance): 1.5 MOhm
• Frequency Range: 20 Hz - 20 kHz
• Bass: +/- 14 dB@40 Hz
• Treble: +/- 18 dB@18 KHz
• Power Requirement: 9V/1.3mA
• Min. Installation Depth: 28mm
