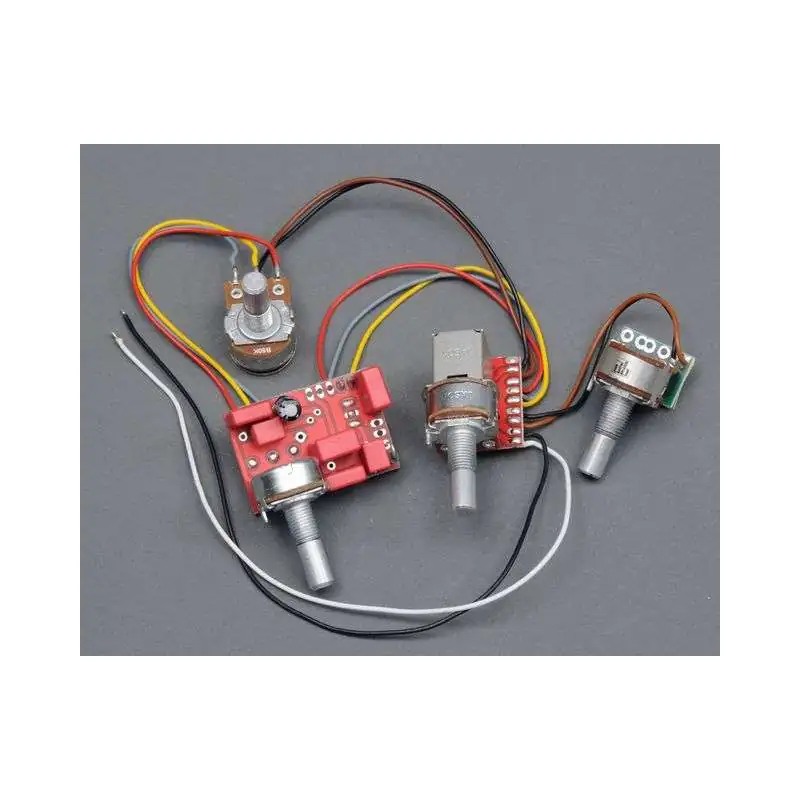

The Glockenklang 2 Band Elektronics is a 2-band onboard preamp , featuring transparent and noiseless bass electronics , an active/passive switch , and a 20Hz - 20kHz frequency range. The Glockenklang 2-Band Onboard Preamp is active/passive switchable (at the volume push/pull), has a balance-pot with no volume dip in centre-position, a treble-pot with +/- 18 dB@18 KHz in active mode, acting as classical highcut in passive mode.

The battery connection is 9V . Due to the high-performance electronics, in a flat position of the EQ, you can't hear a difference between active and passive mode. This preamp comes pre-wired with high flexible cables.

The main features of the Glockenklang 2 Band Elektronics include:

• Gain: 1 (0 dB)
• Input-impedance (without balance): 1.5 MOhm
• Frequency range: 20 Hz -20 KHz
• Bass: +/- 14 dB@40 Hz
• Treble: +/- 18 dB@18 KHz
• Power requirement: 9 volts/1.3 mA
• Min. installation depth: 28 mm (1.1")
