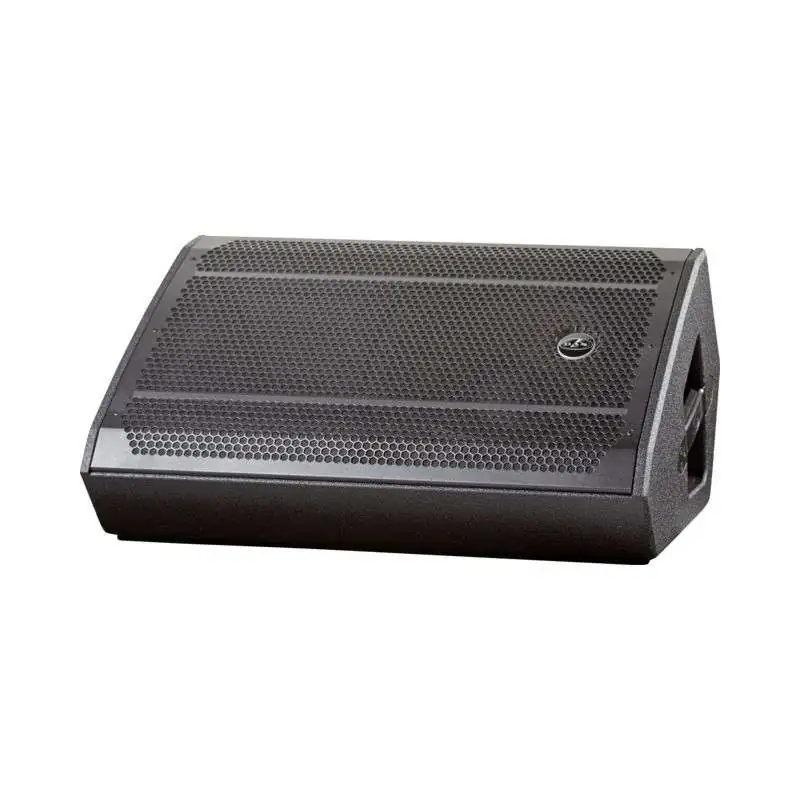

DAS Audio ACTION-M512A
764,15 €
ADÓT TARTALMAZ
Active 12" stage monitor with 1000 Watt/Peak and 24-Bit DSP, 130 dB
Ingyenes kiszállítás több ezer termékre
100%-ban biztonságos online fizetés
30 nap áll rendelkezésre az áru visszaküldésére
Active 12" 2-way stage monitor
- Frequency range (-10 dB): 60 Hz - 20 kHz
- Horizontal coverage (-6 dB): 80º
- Vertical coverage: 50º
- Maximum peak sound pressure level at 1 m: 130 dB
- Rated amplifier power (RMS): 500 watts
- Rated amplifier power (peak): 1000 watts
- Input type: Balanced
- Input impedance: 20 kOhm
- Input sensitivity: 1.95 V (+8 dBu)
- Audio signal input connector: 2 x XLR jack
- AUX input connector: 1 x 3.5 mm mini jack
- Audio Link: 2 x XLR male
- Control: DAScontrol ™
- AC input connector: powerCON NAC3MPA
- AC output connector: powerCON NAC3MPB
- Operating range: 90-127 / 180-250 VAC
- Current consumption 230 V a: 1: {i: 0; s: 5: "1.1 A";}
- Housing construction: birch plywood
- Housing geometry: Trapezoidal
- Coating: ISO-Flex paint
- Color: Black
- Dimensions (H x W x D): 335 x 650 x 450 mm
- Net weight: 19,5 kg
- LF driver: 12MI4
- HF driver: M-34
- Horn / Waveguide: BC-85
Features
- Birch multiplex housing
- Robust ISO-flex PU lacquer
- DAScontrol™ LCD display
- PowerCon In/Out mains connection
Applications
- Concerts and corporate AV systems
- Mobile and live clubs
- Concert halls, theaters and auditoriums
- Houses of worship
12" stage monitor with Class-D-Bi-Amp amplifier
The DAS Audio ACTION-M512A is an active 12" stage monitor with integrated convection-cooled Class-D bi-amp power amplifier with 1000 watt/peak and is controlled by a 24-bit DSP that offers a variety of additional functions such as 3 voicing presets, high-pass filter, Delay (max. 10m) or standby mode and is very easy to operate by DAScontrol™ with LCD display and encoder.
Equipment
The DAS Audio loudspeaker components from own development consist of a 12MI4 12" woofer with 2,5" VCD and a M34 1" driver with titanium cone and 1,4" VCD, which acts on a rotatable 80°x50° tweeter horn.
The high-quality cabinet is made of birch plywood, coated with the robust ISO-flex PU lacquer and has a side-mounted high stand flange.
With two separately adjustable mic/line inputs with combo socket, an additional 3.5mm aux input and PowerCon mains connection with additional output for looping through, the ACTION series offers universal connection options.
PAH0022650-000
Adatlap
- Bluetooth
- No
- Signal Processing
- Active
- RJ45 Interface / Network
- No
- Manufacturer
- DAS Audio
- Weight (kg)
- 19.5
- Integrated Mixer
- No
- Width (mm)
- 650
- Height (mm)
- 335
- Depth (mm)
- 450
- Typ
- Monitor
- Multi-Function Housing
- No
- Mic Input
- 2
- Size of Woofer (Inches)
- 12
- Size of Tweeter (Inches)
- 1
- Peak output in W
- 1000
- max. Peak SPL (dB)
- 130
- Housing Material
- Wood
- Flange
- 35mm
- Beam angle
- 80°
- Frequency Response from (Hz)
- 60
- Frequency Response to (Hz)
- 20000
- DSP
- Yes
- Link
- Yes
- Input
- Combo Socket
- Output
- XLR
- WLAN
- No
- Battery operation
- No
- incl. Stand
- No
- incl. Cover
- No
- Airworthy
- No
- Output in W (RMS)
- 500
