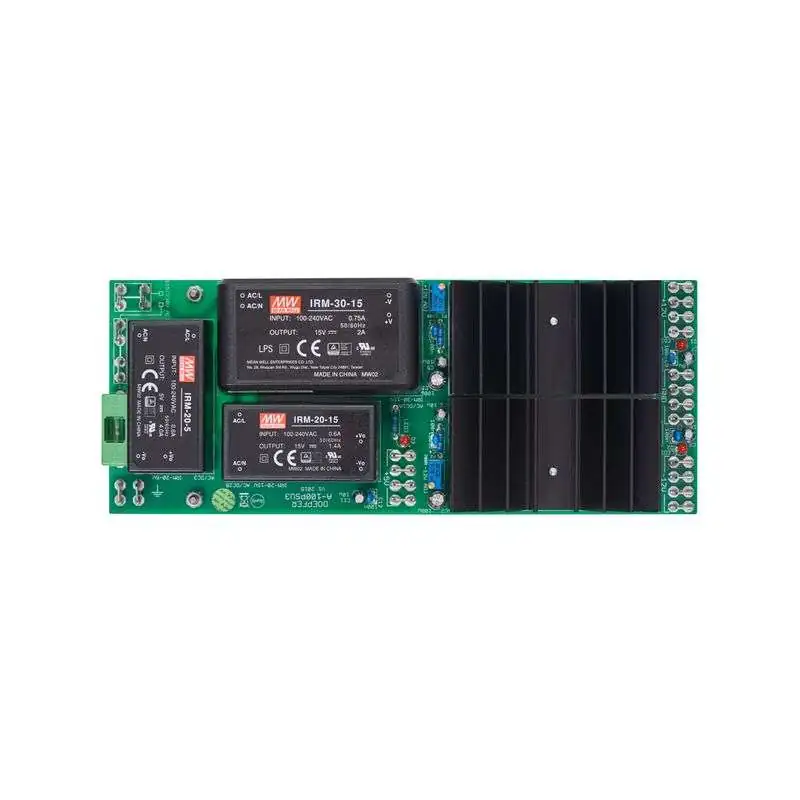

The Doepfer A-100PSU3 Modular System Board is a switching power supply (12V/5V) for powering A-100 series units. Up to four bus boards can be connected to a single A-100PSU3 power supply.

The Doepfer A-100PSU3 Modular System Board features include:

• Assembled and tested power supply for A-100 series bus boards
• Up to four bus boards can be connected to the A-100PSU3
• Ratings: 12V (2000mA), -12V (1200mA), +5V (4000mA)
• Mains voltage wide range input 100...240V
• This unit does not include cables, mains inlet, power switch, fuse and mounting material (screws, spacers, nuts, washers)
• Dimensions (LxWxH): 200 x 80 x 40 mm

PLEASE NOTE: Suitable for use by qualified personnel only due to electrical safety (dangerous mains voltage 115V / 230V)
