      2-way 10" active speaker, integrated DSP, 400 Watt amplifier, Bluetooth function, 3 input channels, including soft cover
      Cantitate :
      Scrie o recenzie

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Livrare gratuită pentru mii de articoleLivrare gratuită pentru mii de articole
      • Plăți online 100% sigurePlăți online 100% sigure
      • 30 de zile disponibile pentru returnarea bunurilor30 de zile disponibile pentru returnarea bunurilor

      Active 2-way speaker

      • 10" bass driver and 1" compression driver
      • 400 watt amplifier
      • Bluetooth connection
      • 3x input channels
      • 1x Link Out with Link/Mix switch
      • Linear Phase FIR filter for precise sound reproduction
      • Integrated DSP with presets for great versatility
      • Including soft cover

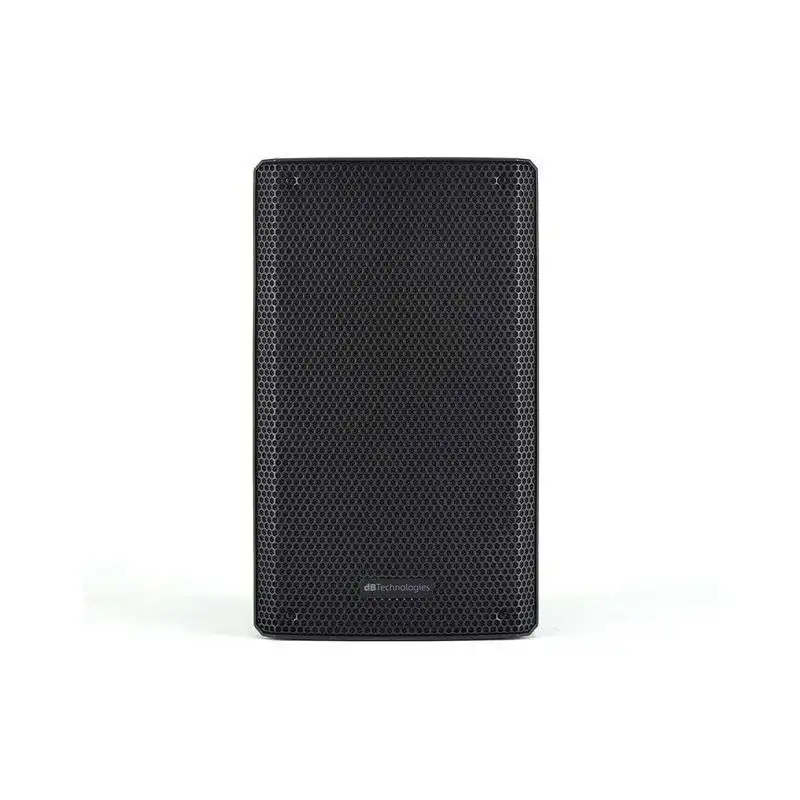

      The dB Technologies KL 10

      The dB Technologies KL 10 is an active 2-way loudspeaker with a 10" bass driver and 1" compression driver with 1" voice coil. The system is powered by a powerful and efficient 400 watt amplifier with dBTechnologies' advanced DSP. The system's FIR filters provide coherent audio performance that is consistent and crystal clear from any listening position. furthermore, the user can make acoustic adjustments to the sound reinforcement situation using presets.

      Connections

      The speaker has 3 input channels with independent level control:

      • CH 1 is a balanced combination XLR/6.3 mm jack/microphone input with a source selection switch;
      • CH 2 is a balanced XLR and TRS jack IN;
      • CH 3 allows connection to an ext. source player via Bluetooth®.

      A balanced XLR-M output allows connection to a second speaker or a mixer. It is possible to select which signal is sent to the main output:

      • LINK (the signal is picked up before any level control)
      • MIX (the signal is determined by the level control of each channel and Main).

      KL Series

      The KL Series from dB Technologies has been developed with the goal of further enhancing the versatility of the dBTechnologies 2-way active loudspeaker series: Combining efficiency with professional sound quality, the KL systems feature Bluetooth® connectivity, three INPUT channels, impressive SPL, and powerful DSP for highly accurate sound reproduction.

      Solid and versatile, the KL Series speakers feature a clean and contemporary full-grille design that enhances both transportability through integrated handles (1x side and 1x top) and multi-functionality. The speaker can be used horizontally as a stage monitor (on both sides) and has a stand mount with 2 tilt angle options (0° and 7.5°) and can be operated on a stand or stacked on dBTechnologies subs.

      All KL models are supplied with soft cover.

      Technical data

      • Speaker type: 2-way active speaker
      • Frequency range [-10 dB]: 55 - 18,000 Hz
      • Maximum sound pressure: 125 dB
      • HF: 1 " CD, 1 "vc
      • LF: 10 ", 2" vc
      • Radiation: 90 ° x 60 °.
      • Crossover frequency: 2000 Hz (24 dB / Oct.)
      • Amplifier technology: Class D (LF) + Class AB (HF)
      • Power peak (LF HF): 400 watts
      • Controls: 1x volume, 1x microphone / line with slide switch
      • Display: Power or / Signal / Limiter LEDs
      • Controller: DSP 20/56 bit
      • AD / DA converter: 24 bit / 48 Hz
      • DSP presets: Playback, Flat, Bass Boost, Wedge
      • Limiter: Peak, RMS, Thermal
      • Advanced DSP functions: Linear phase FIR filter
      • Signal inputs: 1x combo (XLR / Jack) microphone / line, 1xXLR / TRS
      • Bluetooth input: 1x Bluetooth receiver
      • Signal output: 1x XLR connector (LINK / MIX)
      • Housing: polypropylene
      • Handles: 3 (2 on side 1 top)
      • Angle to the top: Monitor insert 40 °.
      • Flange: 36 mm, double positioning
      • Width: 310 mm
      • Height: 521 mm
      • Depth: 292 mm
      • Weight: 11.7 kg
      dB Technologies
      PAH0022592-000

      Fisa tehnica

      Bluetooth
      Yes
      Signal Processing
      Active
      RJ45 Interface / Network
      No
      Manufacturer
      dB
      Weight (kg)
      11.7
      Integrated Mixer
      No
      Width (mm)
      310
      Height (mm)
      521
      Depth (mm)
      292
      Typ
      Head
      Multi-Function Housing
      Yes
      Mic Input
      1
      Size of Woofer (Inches)
      10
      Size of Tweeter (Inches)
      1
      Peak output in W
      400
      max. Peak SPL (dB)
      125
      Housing Material
      Plastic
      Flange
      36mm
      Beam angle
      90°
      Frequency Response from (Hz)
      55
      Frequency Response to (Hz)
      18000
      DSP
      Yes
      Link
      Yes
      Input
      Combo Socket
      Output
      XLR
      WLAN
      No
      Battery operation
      No
      Wheels included
      No
      incl. Stand
      No
      incl. Cover
      Yes
      Crossover Network
      No
      EQ
      No
