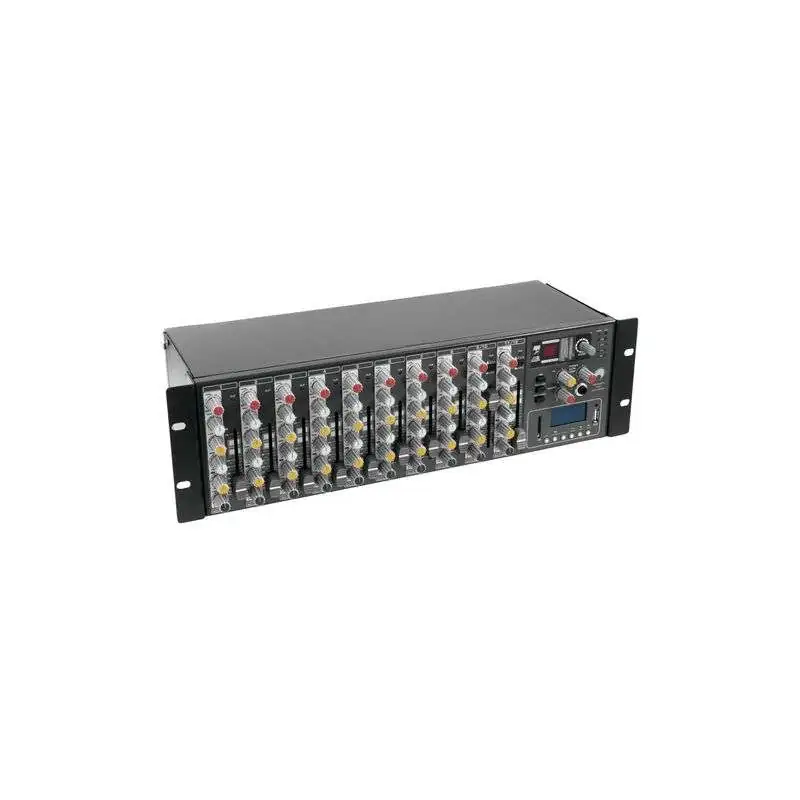

The Omnitronic RM-1422FX USB Rack Mixer is a classic 19" rack mixer with 12 input channels for clubs, bars and permanent installations. The robust 3U mixer is ideally suited for rack mounting, has high-quality components such as a USB audio interface that allows recording and playback via a computer. The mixer is supplied with 8 mono input channels with gain control, 2-way EQ, pan control and channel fader as well as 2 stereo input channels with 2-way EQ, balance control and channel fader. The mixer has a 24-bit DSP effect unit with 16 different effects such as reverb, echo and flanger. In addition, the rack mixer features an intrigued MP3 player with SD card slot, 4-digit stereo LED level meter, +48V phantom power and separate outputs for the main mix and control room.

Entrances:

• Mic, mono XLR balanced
• Line, mono jack symmetrical
• Channel Insert jack unbalanced
• Aux Return, stereo jack L/R balanced
• Line, stereo jack L/R balanced
• Tape Cinch L/R

Exits:

• Main Out XLR L/R balanced
• Control Room Out jack L/R unbalanced
• Aux Send jack unbalanced
• Tape Cinch L/R
• Headphone jack unbalanced
• Headphone impedance: >8 Ohm

Features:

• USB connection: 1.1 Type B
• Frequency range: 20-20 000 kHz
• Distortion: 0.05
• Signal-to-noise ratio: 89 dB
• Dimensions (LxWxH): 180 x 483 x 136 mm
• weight: 3,8 kg
