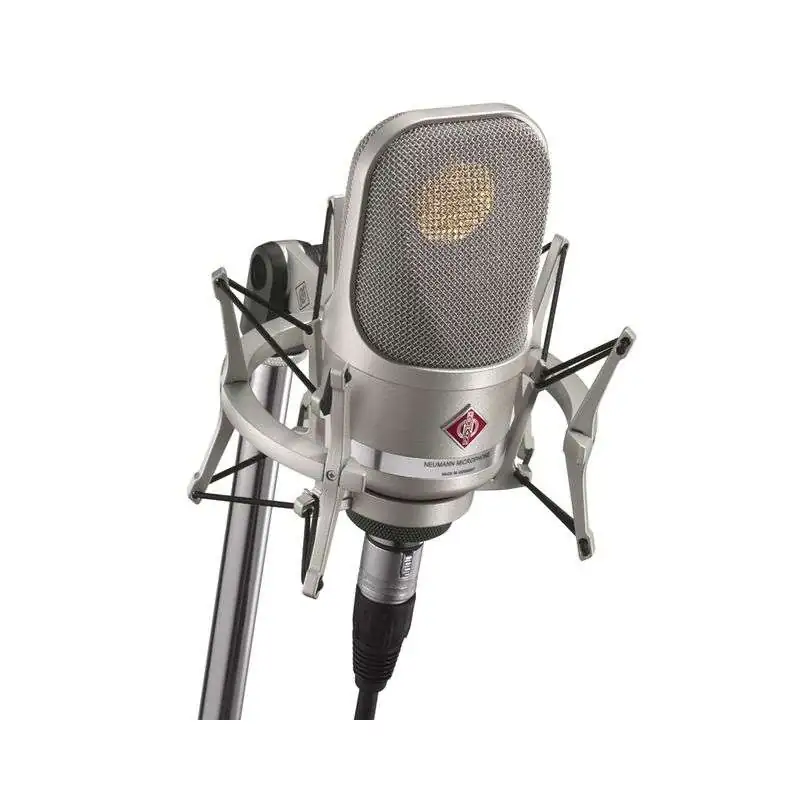

The TLM 107 Studioset Nickel features the TLM 107, which is a multi-pattern condenser microphone, as well as Newmann's EA 4 shockmount.
The TML 107 has multi-faceted versatility, no-compromise sound and innovative operation: With five directional characteristics and a novel operating concept, this standard-setting large-diaphragm microphone provides sound without any coloration. Featuring equally impressive level stability and low self- noise, it captures everything from the softest whisper to thundering drums. For studio, broadcasting and demanding home recording applications.
The EA 4 shockmount also fits the TLM 102/103/147/193.
The main features of the TLM 107 Studioset Nickel include:
- Acoustical operating principle: pressure gradient transducer
- Directional pattern: Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8
- Frequency range: 20 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm: 11 mV/Pa
- Rated impedance: 50 ohms
- Rated load impedance: 1 kohms
- Equivalent noise level, CCIR1): 22 dB
- Equivalent noise level, A-weighted1): 10 dB-A
- Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL): 72 dB
- Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL): 84 dB
- Maximum SPL for THD 0.5%2): 141 dB
- With preattenuation -6 dB: 147 dB
- With preattenuation -12 dB: 153 dB
- Max. output voltage for THD < 0.5 %: 10 dBu
- Power Supply (IEC 61938): P48
- Current consumption: 3.2 mA
- Required connector: XLR 3 F
- Weight: 445 g
- Diameter: 64 mm
- Length: 145 mm
