      Endorphin.es Shuttle Control is a MIDI/CV interface module for modular synthesizers in Eurorack format. The module can recei...
      Cantitate :
      Scrie o recenzie

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Livrare gratuită pentru mii de articoleLivrare gratuită pentru mii de articole
      • Plăți online 100% sigurePlăți online 100% sigure
      • 30 de zile disponibile pentru returnarea bunurilor30 de zile disponibile pentru returnarea bunurilor

      Interface module with additional functions

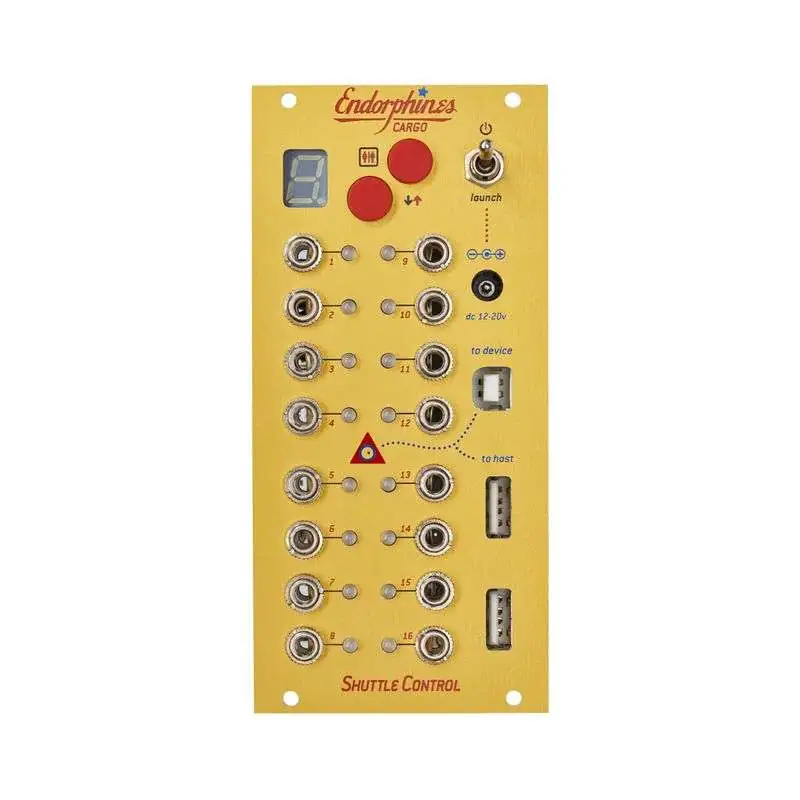

      Endorphin.es Shuttle Control is a MIDI/CV interface module for modular synthesizers in Eurorack format. The module can receive USB-MIDI simultaneously at different USB inputs, for example control signals from a tablet or PC/Mac via the "to device" socket or via the "to host" sockets of USB-MIDI keyboards and MIDI controllers. These MIDI signals can then be transmitted from 16 CV jacks. LFOs, triggers, control changes and random can also be assigned to the outputs. Mappings can also be created on the computer using an editor. It can also be used to power small modular systems.

      editor

      With the editor you can design and save up to 16 different mappings, which can be called directly via the module. For example, these can be up to 8-fold polyphonic setups, with which different CV scales (1V/oct, 1.2V/oct, Hz/V etc.) can also be realized. This allows different VCOs working with different CV scales to be addressed simultaneously and integrated into a polyphonic setup.

      power supply

      Although the module works independently as a MIDI/CV interface, it can also be used as a power supply for a small modular system. It has an input for a laptop power supply with 12-20V DC and can transmit the operating voltages to up to six modules via a long ribbon cable with various Eurorack connectors. The USB sockets also output +5V, so among other things an LED lamp can be connected.

      Endorphin.es Shuttle Control at a glance:

      • MIDI/CV interface
      • Two simultaneously usable USB inputs
      • 16 CV-sockets
      • Editor for PC/Mac
      • Can be used for power supply

      Endorphin.es Shuttle Control

      Endorphin.es
      SYN0006240-000

      Fisa tehnica

      Depth (mm)
      35
      + 12 V (mA)
      200
      - 12 V (mA)
      100
      TE / HP
      12
      Interface function
      MIDI - CV/Gate
      Manufacturer
      Endorphin.es
