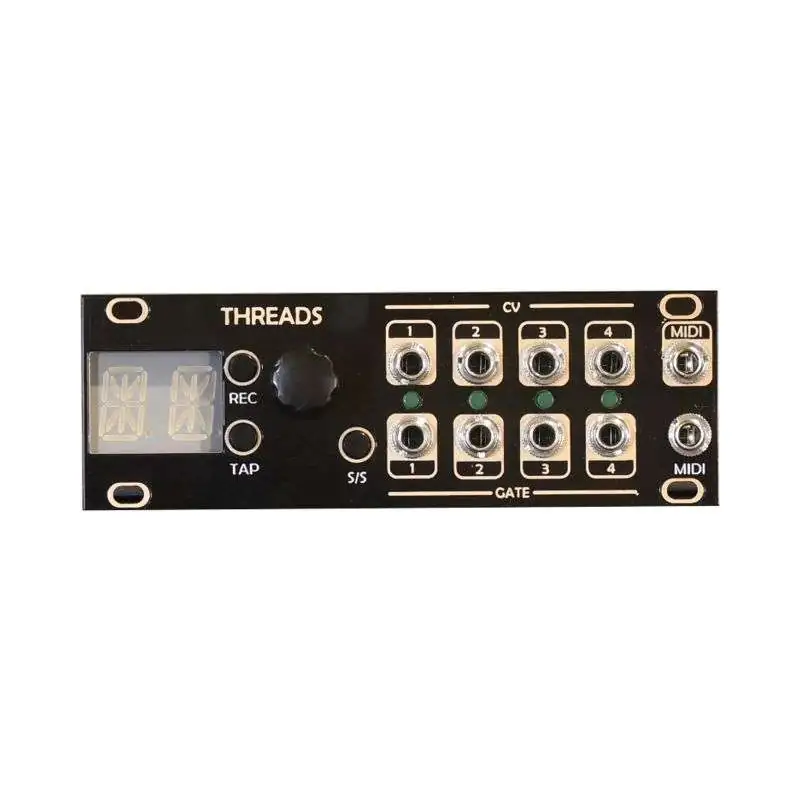

After Later Audio 1U Threads
      After Later Audio 1U Threads

      After Later Audio 1U Threads

      234,43 €
      TAXĂ INCLUSĂ
      în stoc
      After Later Audio 1U Threads, MIDI, Interface, polyphonic, quad, SH-101,Sequencer, CV, Gate, Clock, Yarns, Mutable Instruments
      Cantitate :
      Scrie o recenzie

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Livrare gratuită pentru mii de articoleLivrare gratuită pentru mii de articole
      • Plăți online 100% sigurePlăți online 100% sigure
      • 30 de zile disponibile pentru returnarea bunurilor30 de zile disponibile pentru returnarea bunurilor

      Quad MIDI to CV/Gate interface

      • MIDI to CV/Gate interface
      • 4 channels
      • Arpeggiator
      • SH-101 Style Sequencer
      • Euclidean sequencer
      • configurable setups
      • mono, dual, poly, quad modes
      • MIDI In & Out/Thru
      • 4x CV Out
      • 4x Gate Out
      • based on Mutable Instruments Yarns
      • Intellijel 1U Format

      1U Threads from After Later Audio is quadruple MIDI on CV/Gate interface for converting MIDI data into control voltages. The interface has more tricks up its sleeve than one would expect at first glance. For example, there are ten preset layouts in the menu that qualify the module for various monophonic, duophonic, polyphonic and quaddrophone configurations, among others. Depending on the layout, not all sockets are used for voice assignment, the connections are then provided for velocity, modulation wheel, aftertouch, clock, Reset or assignable controllers. In addition, the voice distribution (poly, cycle, random, unison, etc.), MIDI channel assignment, note priority and numerous sub-functions (including clock settings) can be defined in detail. Additive to the incoming notes or instead of them, the 1U Threads is able to run an arpeggiator, a SH-101 Style sequencer or a Euclidean sequen cer for each channel. The results, especially in combination with the various voicemodes and patched sounds, provide many a surprise that you never thought about before. The module can be used in any Eurorack case with Intellijel 1U row, furthermore an internal cabling with the Intellijel cases Palette 104 and 7U Performance is provided, for which suitable connection cables are included.

      After Later Audio
      SYN0008542-000

      Fisa tehnica

      Depth (mm)
      25
      + 12 V (mA)
      60
      - 12 V (mA)
      2
      TE / HP
      24
      Interface function
      MIDI - CV/Gate
      Manufacturer
      After Later Audio
