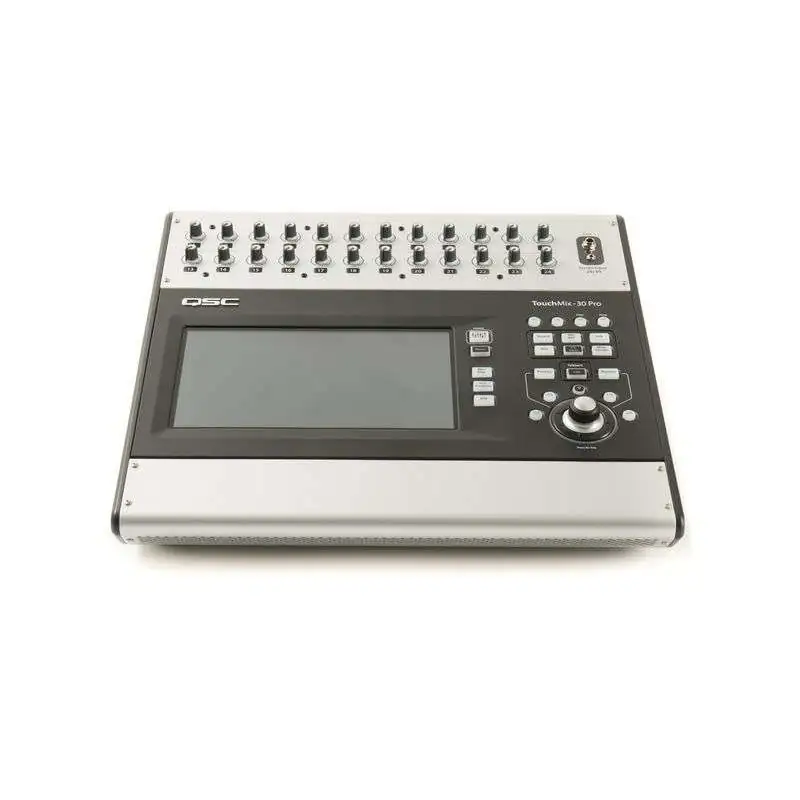

With the TouchMix-30 PRO, QSC is adding another member to the TouchMix-Family

The TouchMix family is a compact digital mixer series primarily geared towards musicians with little previous audio engineering experience but who want to achieve great results; this also means more time to play music and less time wasted on technical details. However, the ability to switch between two different views also makes this TouchMix-30 PRO very interesting for professional users.

The "Easy Mode" is intended for, as the name suggests, beginners and automatically controls various details for you. Meanwhile the "Extended Mode" is for more advanced users who wish to be able to adjust the attack and release times of the compressors or gates used, as well as all the other details within the mix.

The TouchMix compact digital mixers are standalone and can operate completely independently from a computer, tablet or external monitor. All settings can be easily controlled via the colour/multi-touch display together with the large encoder wheel. Frequently used functions can be accessed via the programmable hardware buttons. TouchMix can also be operated remotely. Using an external router (not included) a WLAN connection can be created, and all parameters can then be remote controlled via an iOS or Android device.

In addition, the TouchMix-30 PRO allows you to record all of the channels as well as the stereo mixes either onto a USB stick or an external hard drive. All of this is done without the use of computer. Data is stored in 32-bit wave files and can be imported into the mixer again for a virtual sound-check. This allows you to easily create recordings, which can then be edited with DAW software.

• Graphical user interface with color touch navigation
• Hardware Controls for quick and safe operation
• Intuitive workflow: easy for beginners - fast for professionals
• 32 Inputs Mic/Line: 28 x XLR, 4 x XLR/Klinke Combo, 3 x Stereoinputs 6,3mm TRS, 1x 3,5mm Stereo-TRS und 1 x Talkback - Mic XLR, 2 - Track Stereo-Playback via 2x USB 3.0 interfaces
• Class A Preamps/24-Bit-converter for highest Audio quality
• Phantompower 48 V switchable per channel
• Input: parametrische 4-Band EQs mit variablen 24 dB/Oktave Hoch- und Tiefpass-Filtern, Kompressor und Gate in jedem Kanal
• 22 Outputs: 2 x Main L/R XLR, 14 x Aux XLR, 3 x Stereo Aux z. B. für In-Ear-Monitoring 6,3mm Stereo-TRS, 2 x Monitor XLR, 1 x Stereo Cue 6,3mm Stereo-TRS und 2 - Track Stereo-Recording via 2x USB 3.0 interfaces
• Output: 1/3-Oktav Graphic-EQ, Anti-Feedback Notchfilter, Delay and Limiter
• 34 Track Live Recording/Playback via USB 3.0 interfaces
• 8 DCA Groups (with Mutes)
• 8 Subgroups
• 8 Mutegroups
• 6 professional effects processors usable as Reverb (2 Types), Pitch correction, Mono-/Stereo-Delay, Chorus
• 50 Factory-/50 User-Effektpresets intern/extern storable/retrievable
• 130 user-defined Scenes/Channels/Effectpresets intern/extern storable/retrievable
• TouchMix Control Mixer App: Access to all mixing functions / individual Monitormix , available for Android und iOS (iPad, iPhone, iPod)
• "TouchMix DAW Utility" Software: two-way migration from TouchMix Wave to DAW
• possible remote-control of many functions via USB/MIDI - footswitch
