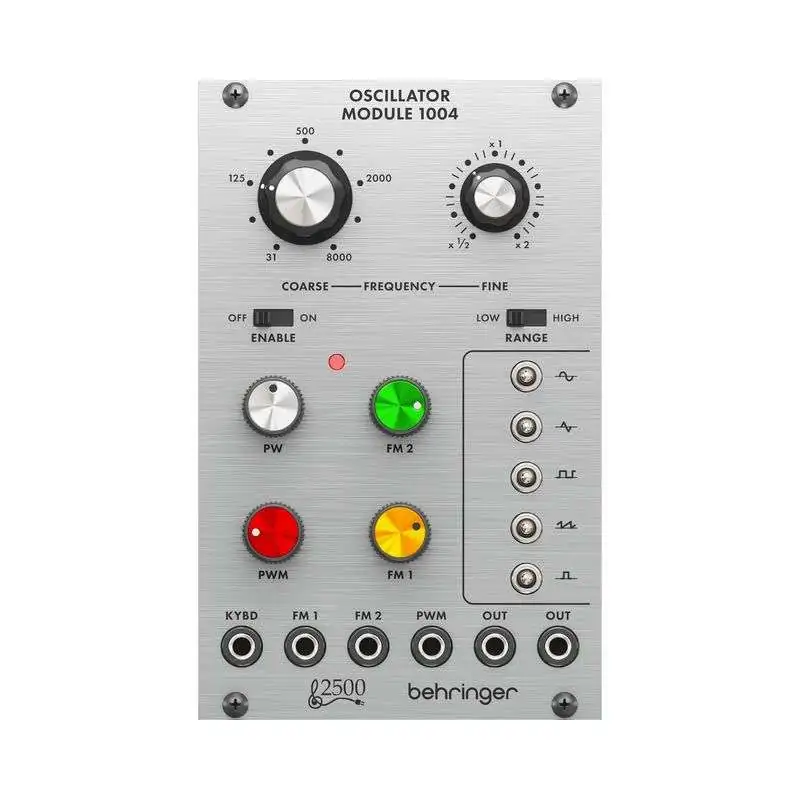

      Eurorack clone of the Oscillator Module 1004 from the ARP 2500 analog synthesizer.
      Kvantitet:
      Skriv din recension

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Fri frakt på tusentals varorFri frakt på tusentals varor
      • 100 % säkra onlinebetalningar100 % säkra onlinebetalningar
      • 30 dagar tillgängliga för att returnera varorna30 dagar tillgängliga för att returnera varorna

      Analog oscillator

      Behringer Oscillator 1004 at a glance:

      • Eurorack module
      • Analog oscillator
      • Mixable waveforms
      • LFO mode
      • PWM
      • Audio range: 15.5 Hz - 16 kHz
      • LFO range: 0.03 Hz - 32 Hz
      • 2 FM inputs
      • 2 parallel outputs

      For some, the ARP 2500 is probably the holy grail of synthesizer history. Definitely rare, extremely impressive in terms of its dimensions, overwhelming in terms of sound and, then as now, a one-off. The dinosaur of analog synthesizers, built from 1970 to 1981, looks very tidy despite its modularity, which is thanks to the crossbar system used. Behringer has reduced the modules to the compact Eurorack format and meticulously adhered to the historical originals in terms of both function and sound.

      The Behringer Oscillator 1004 is a clone of the tone generator of the same name from the ARP 2500 synthesizer. The outstanding feature of this analog oscillator is the mixable waveforms. By means of five toggle switches, each of which is assigned to a waveform, all waveforms can be combined as desired, even all at the same time if required. In the center position, the waveform is switched off. The audio range extends over a range of 15.5 Hz - 16 kHz, in LFO mode 0.03 Hz to 32 Hz are achieved. The pulse width of the square waveform can be modulated. There are also two FM inputs with attenuators.

      Behringer
      SYN0007777-000

      Datablad

      Manufacturer
      Behringer
      Depth (mm)
      4.6
      TE / HP
      16
      + 12 V (mA)
      60
      - 12 V (mA)
      50
