      The Spherical Wavetable Navigator (SWN) of 4ms is a mixture of six-part Wavetable oscillator and Synthvoice. LFO, Envelope, Qua...
      Kvantitet:
      Skriv din recension

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Fri frakt på tusentals varorFri frakt på tusentals varor
      • 100 % säkra onlinebetalningar100 % säkra onlinebetalningar
      • 30 dagar tillgängliga för att returnera varorna30 dagar tillgängliga för att returnera varorna

      Six channel oscillator / Synthvoice

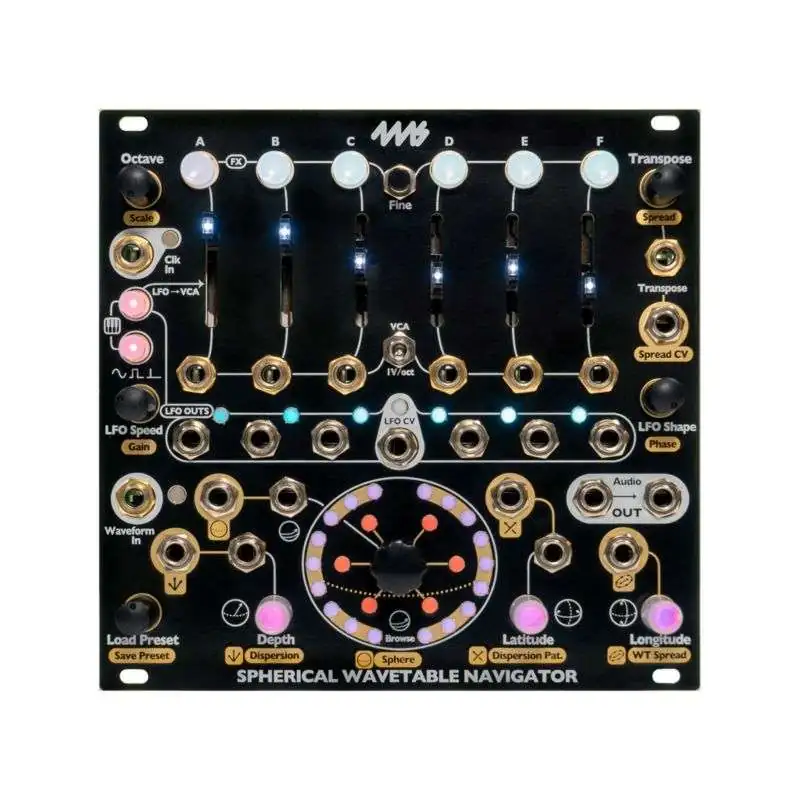

      The Spherical Wavetable Navigator (SWN) of 4ms is a mixture of six-part Wavetable oscillator and Synthvoice. Each voice can have its own pitch setting (with or without quantizer), volume and individual waveform. Twelve spherical wavetables are available ex works, and 108 more can be added by the user. Six internal LFOs/envelopes, which also have their own outputs, bring a lot of dynamics to the sound sequences. The six LFOs/envelopes are based on a pool of at least thirteen typical waveforms and twelve complex shapes, which can be synchronized to the clock and adjusted with their own dividers or multipliers for each voice.

      Even more waveforms

      The SWN internally offers the possibility to create new waveforms from input audio material. Alternatively, new waveform material can be transferred to the module via an audio cable using the free SphereEdit software, which runs on Mac, Windows and Linux.

      High musicality

      That the Spherical Wavetable Navigator has a lot to offer, should now be foreseeable. The tonal density generated by the six voices is remarkable. In addition, the SWN is much more than an opulent drone synth, but harmonic distances between the oscillators lead to a very musical interplay. Since each voice has its own VCA, the term Synthvoice is more than justified.

      4ms Spherical Wavetable Navigator at a glance:

      • Eurorack module
      • Six channel oscillator / Synthvoice
      • Independent pitch and waveform per channel
      • 12 Factory Wavetables
      • 108 User Wavetables
      • Six internal LFOs/envelopes with their own outputs
      • Quantizer per channel
      • 108 Preset memory
      • stereo output
      • 26 TE Width
      • +12 V: 185 mA / -12 V: 30 mA

      Superbooth 2018: 4ms Spherical Wavetable Navigator - More Sounds Demo!

      4ms
      SYN0006956-000

      Datablad

      Manufacturer
      4ms
      Depth (mm)
      25
      + 12 V (mA)
      185
      - 12 V (mA)
      30
      TE / HP
      26
