      Active stage monitor with 15" woofer and 1200 watts of power, max. 131 dB SPL and FiRPHASE technology.
      Kvantitet:
      Skriv din recension

      EU3234363840424446USXX5XSSMLXLXXLXXLArm Length6161,56262,56363,56464,5Bust Circumference8084889296101106111Waist Girth6165697377828792Hip Circumference87919599103108113118

      • Fri frakt på tusentals varorFri frakt på tusentals varor
      • 100 % säkra onlinebetalningar100 % säkra onlinebetalningar
      • 30 dagar tillgängliga för att returnera varorna30 dagar tillgängliga för att returnera varorna

      Active stage monitor

      • 1200 watt active monitor
      • 131 dB maximum sound pressure level
      • 90° x 60° coverage
      • FiRPHASE for 0 degree phase
      • 15" woofer, 2.5" voice coil
      • 1" high-frequency driver, 1.4" voice coil
      • Multifunctional enclosure

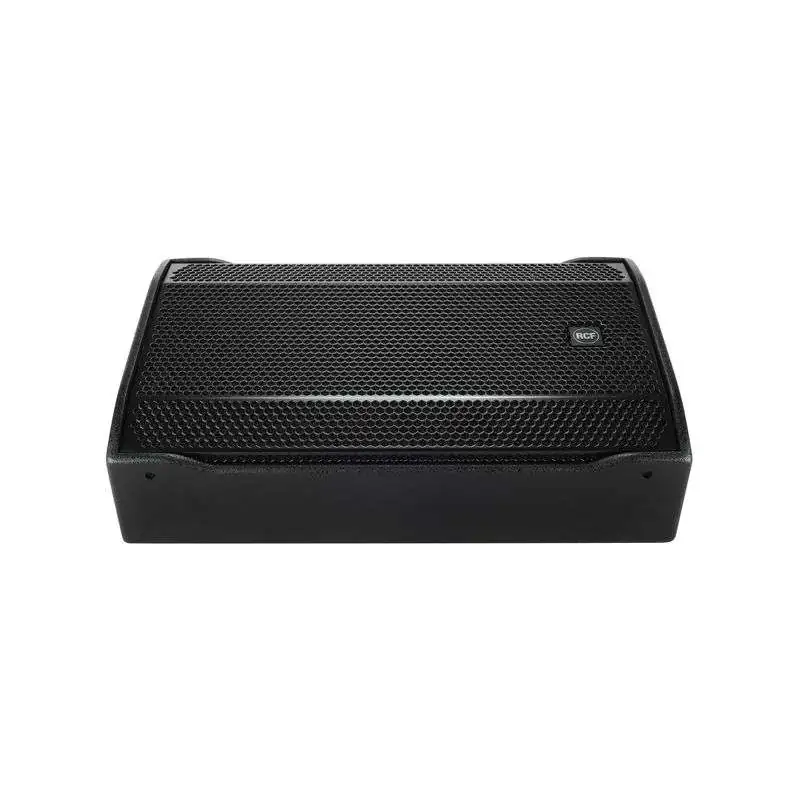

      RCF ST 15-SMA II at a glance

      The RCF ST 15-SMA II is a powerful active stage monitor that is ideal for professional live sound applications. With an impressive 1200 watts of power and a maximum sound pressure level of 131 dB, this monitor delivers exceptionally clear and powerful sound reproduction that will not be drowned out even in noisy environments.

      The monitor's coverage is specified at 90° x 60°, which ensures optimum sound distribution and effective coverage. This coverage characteristic ensures that the sound is distributed evenly across the stage and into the immediate surroundings of the audience. An outstanding feature of the ST 15-SMA II is the implementation of FiRPHASE technology, which ensures phase-linear reproduction. This technology allows the sound to be reproduced in a 0-degree phase, resulting in improved sound clarity and a more natural sound reproduction.

      The active RCF monitor has a powerful 15" woofer with a 2.5" voice coil, which ensures powerful and precise bass reproduction. This is complemented by a 1" high-frequency driver with a 1.4" voice coil, which delivers clear and defined treble. The multifunctional housing of the ST 15-SMA II is designed to be robust and reliable so that it can withstand the demanding conditions of live events. The versatile design allows the monitor to be used in different positions, making it a flexible tool for a wide range of stage applications.

      Technical data

      • Frequency response: 45 Hz ÷ 20000 Hz
      • Max SPL @ 1m: 131 dB
      • Horizontal dispersion angle: 90°
      • Vertical dispersion angle: 60°
      • Compression driver: 1.0'', 1.4'' v.c
      • Woofer: 15'', 2.5'' v.c
      • Input terminal: bal/unbal
      • Input sockets: XLR, Jack
      • Output connectors: XLR
      • Input sensitivity: -2 dBu/+4 dBu
      • Crossover frequency: 1400 Hz
      • Protective circuits: RMS, HF
      • Limiter: Soft Limiter
      • Total power: 1200 W peak, 600 W RMS
      • HF range: 400 W peak, 200 W RMS
      • Low frequencies: 800 W peak, 400 W RMS
      • Cooling: Convection
      • Connections: VDE
      • Handles: 1 side
      • Pole Mount/Cap: Yes
      • Color: Black
      • Height: 362 mm
      • Width: 673 mm
      • Depth: 473 mm
      • Weight: 20.3 kg
      RCF
      PAH0022219-000

      Datablad

      Signal Processing
      Active
      Manufacturer
      RCF
      Weight (kg)
      20.3
      Width (mm)
      673
      Height (mm)
      362
      Depth (mm)
      473
      Typ
      Monitor
      Multi-Function Housing
      Yes
      Size of Woofer (Inches)
      15
      Size of Tweeter (Inches)
      1
      max. Peak SPL (dB)
      131
      Housing Material
      Plastic
      Flange
      Yes
      Beam angle
      90°
      Frequency Response from (Hz)
      45
      Frequency Response to (Hz)
      20000
      Link
      Yes
      Input
      Combo Socket
      Output
      XLR
