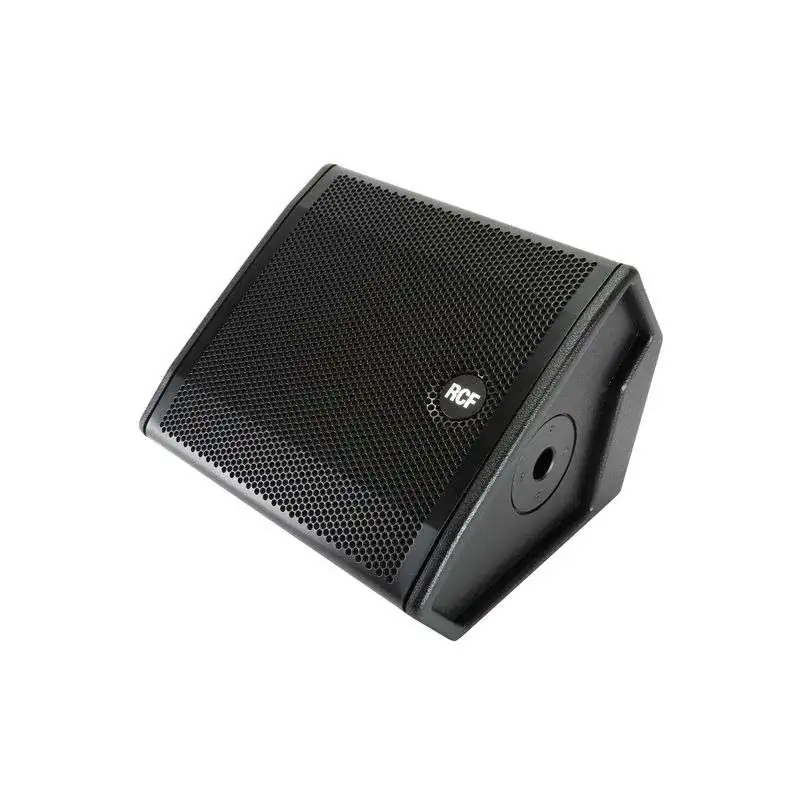

The RCF NX 10-SMA is an active stage monitor, 400 Watts, a 10" Woofer, and a 1" Compression Driver. The NX 10-SMA is equipped with new high power 400 W digital amplifier and a newly designed 10 " coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system. The NX 10-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes: Floor, for stage monitoring; Free Field, for the use of the speakers as a stand-alone PA system. The cabinet is made from Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.

The main features of the RCF NX 10-SMA include:

• 800 Watt Peak, 400 Watt RMS digital bi-amplification
• 60° x 60° constant directivity horn
• 10" High power neodymium woofer, 2.5" voice coil
• 1.7 kapton dome, 1" exit, neodymium high frequency driver
• DSP processing, floor - fre field equalization, soft limiter and protection
• Combo XLR/jack input, XLR signal output
• Frequency response: 60 Hz-20 kHz
• Max SPL: 127 dB
• Compression Driver: 1" neodymium 1.75" voice coil - coaxial
• Bass: 10 "neodymium 2.5" voice coil
• Input Signal: Balanced
• Connections: Combo XLR / TRS
• Input sensitivity: adjustable
• Crossover frequency: 1700 Hz
• Protection circuits: temperature, RMS
• Limiter: Soft Clip Limiter
• Controls: Volume, Free Field, Floor
• Power Supply: 400 Watt Switching Power Supply with PFC
• High frequencies: 100 watt digital amplifier
• Bass: Digital Power Amplifier 300 Watt
• Cooling: Convection
• Connections Power: PowerCon In / Out
• Dimensions (H / W / D): 324 mm / 450 mm / 417 mm
• Weight: 14.5 kg
• Enclosure: Multiplex Baltic birch
• Colour: black, epoxy paint finish
